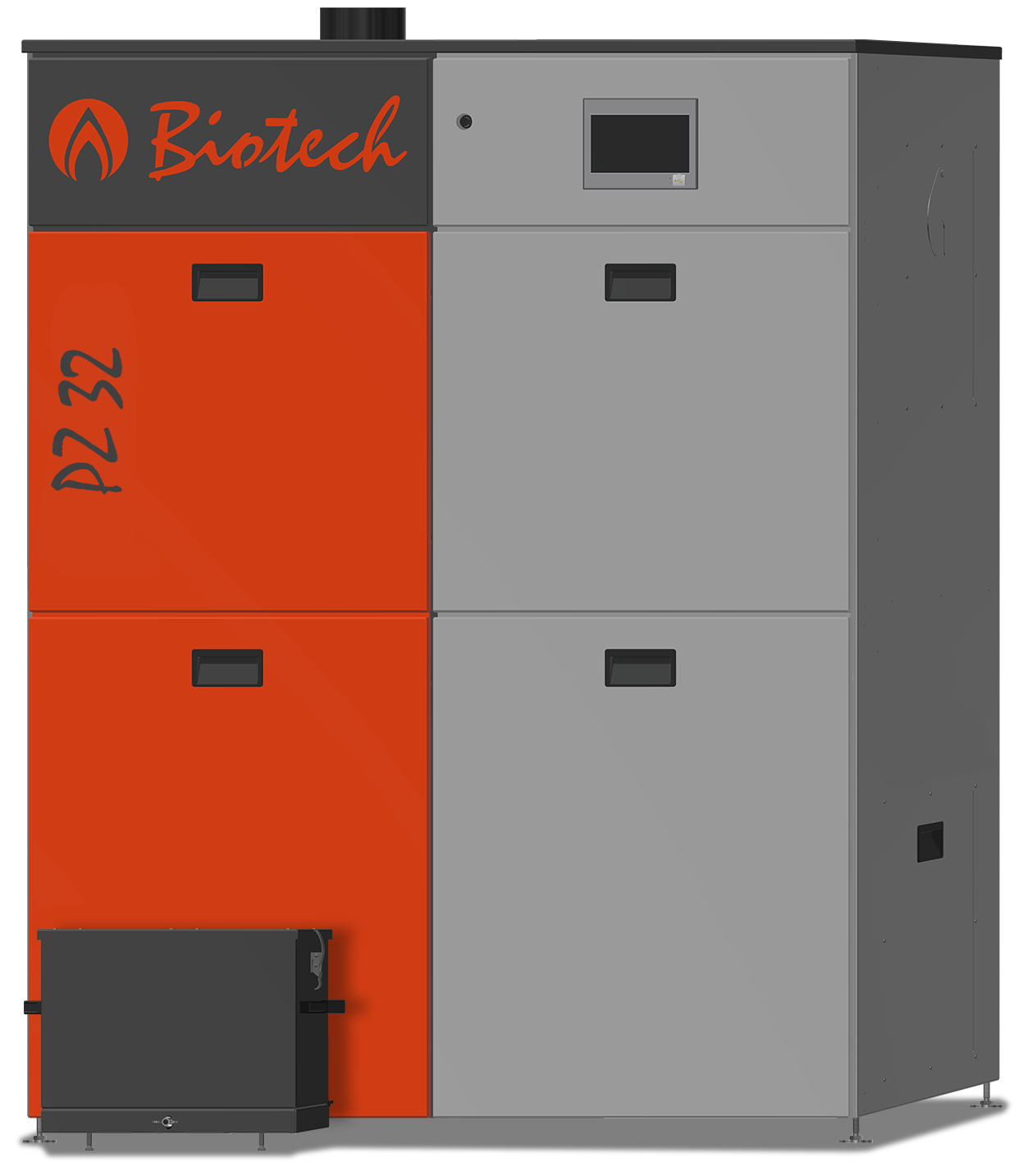

PZ32/35RL MBW

PZ 32/35 Pro MBW

The optimal pellet heating system for a large single-family or two-family house.

Sophisticated biotech technology, a large storage tank and a top efficiency of 94% characterize this boiler.

Power range 8.3-35.0 kW

  • Lambda probe cleaning
  • Stainless steel firing system (high temperature resistant) with automatic cleaning
  • Primary and secondary air regulated with air mass sensor
  • Heat exchanger with automatic cleaning
  • Automatic ignition of the pellets
  • Ash drawer with ash compression
  • High performance suction turbine with vacuum system
  • Pellet intermediate container for manual filling (optionally upgradable to fully automatic) with approx. 246 kg pellet volume (at a bulk density of 650kg/m³)
  • Speed-controlled induced draft fan
  • Microprocessor control with fully graphic display
  • Remote control via smartphone, tablet, PC and laptop possible
  • Unique DCC combustion control using air mass sensors and lambda probe
  • Contact for external request

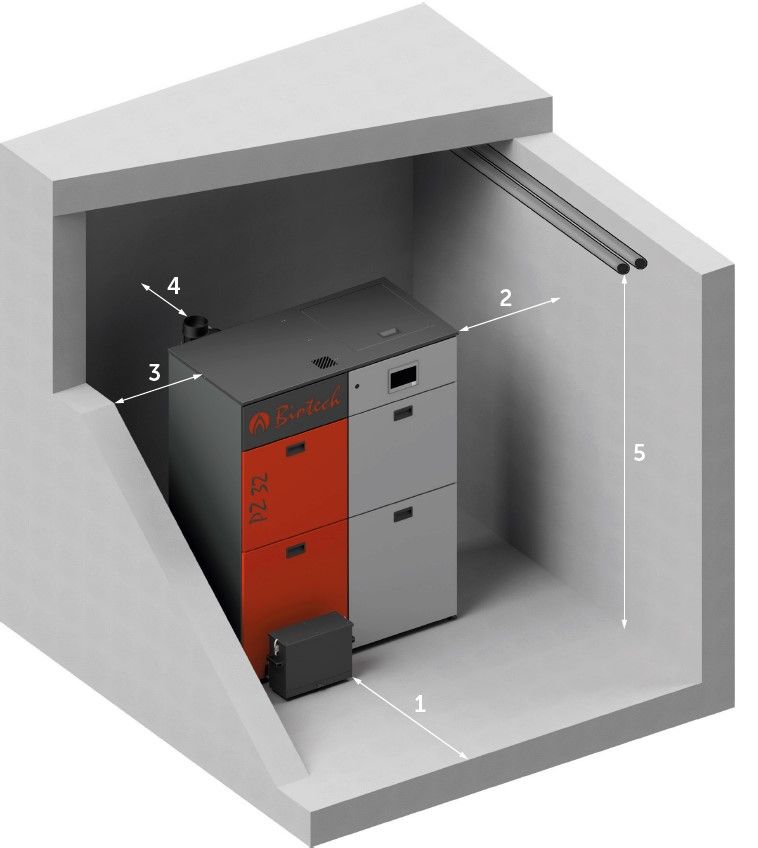

Minimum clearances masonry

1: 1000 mm

2: 400-900 mm

3: 100-300 mm *

4: 500-900 mm

5: 2200 mm


*) Recommendation 250 mm, otherwise increased effort (costs)

Product data sheet Pellet boiler technology
