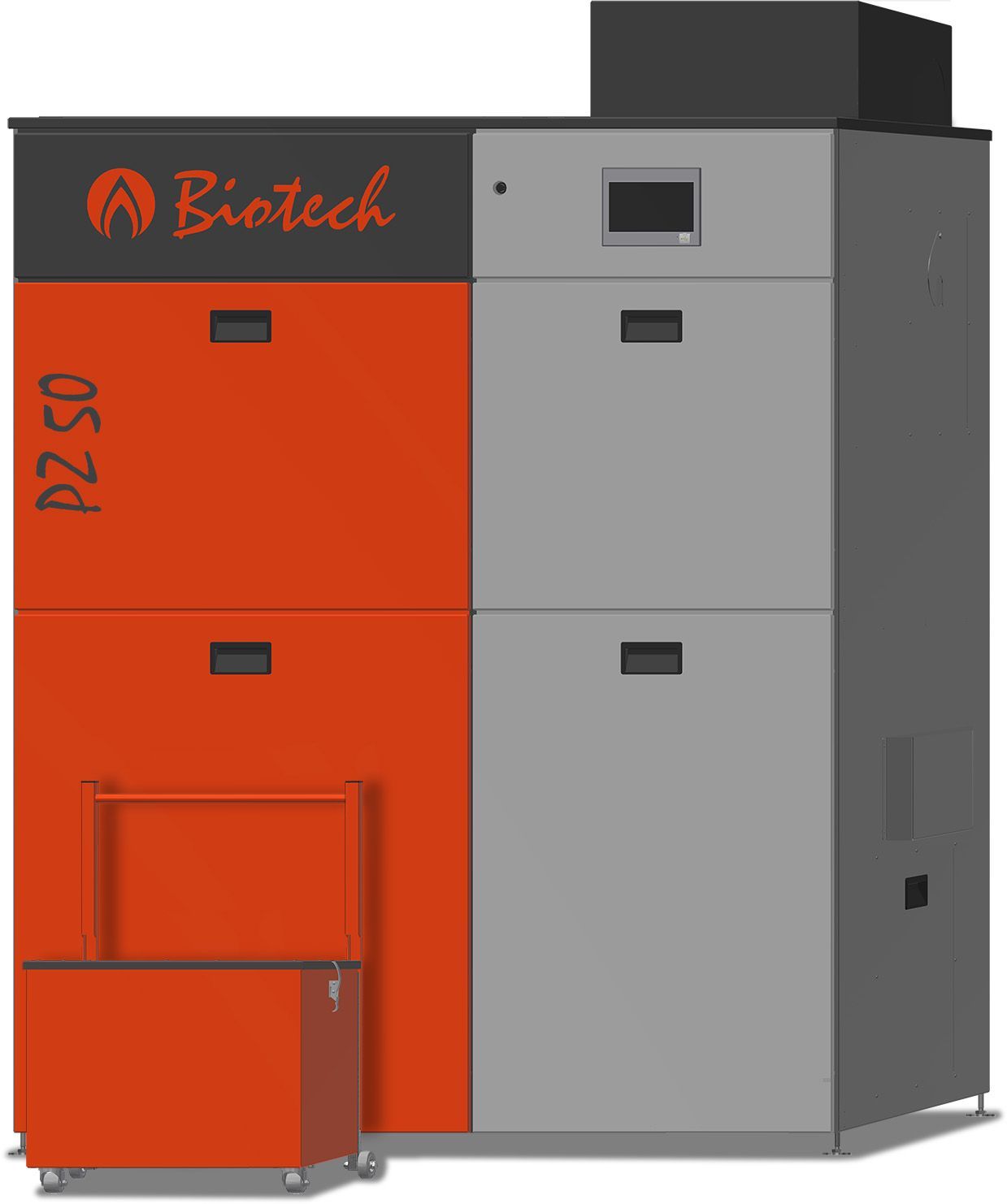

PZ45/50/55RL
PZ 45/50/55 RL
The optimal pellet heating system for the detached house. Sophisticated biotech technology, a large storage tank and a top efficiency of 94% characterize this boiler.
Power range 13.1-52.8 kW
- Lambda probe cleaning
- Stainless steel firing system (high temperature resistant) with automatic cleaning
- Primary and secondary air regulated with air mass sensor
- Heat exchanger with automatic cleaning
- Automatic ignition of the pellets
- Ash drawer with ash compression
- High performance suction turbine with vacuum system
- Storage container with approx. 210 kg pellet volume
- Speed-controlled induced draft fan
- Microprocessor control with fully graphic display
- Remote control via smartphone, tablet, PC and laptop possible
- Unique DCC combustion control using air mass sensors and lambda probe
- Contact for external request

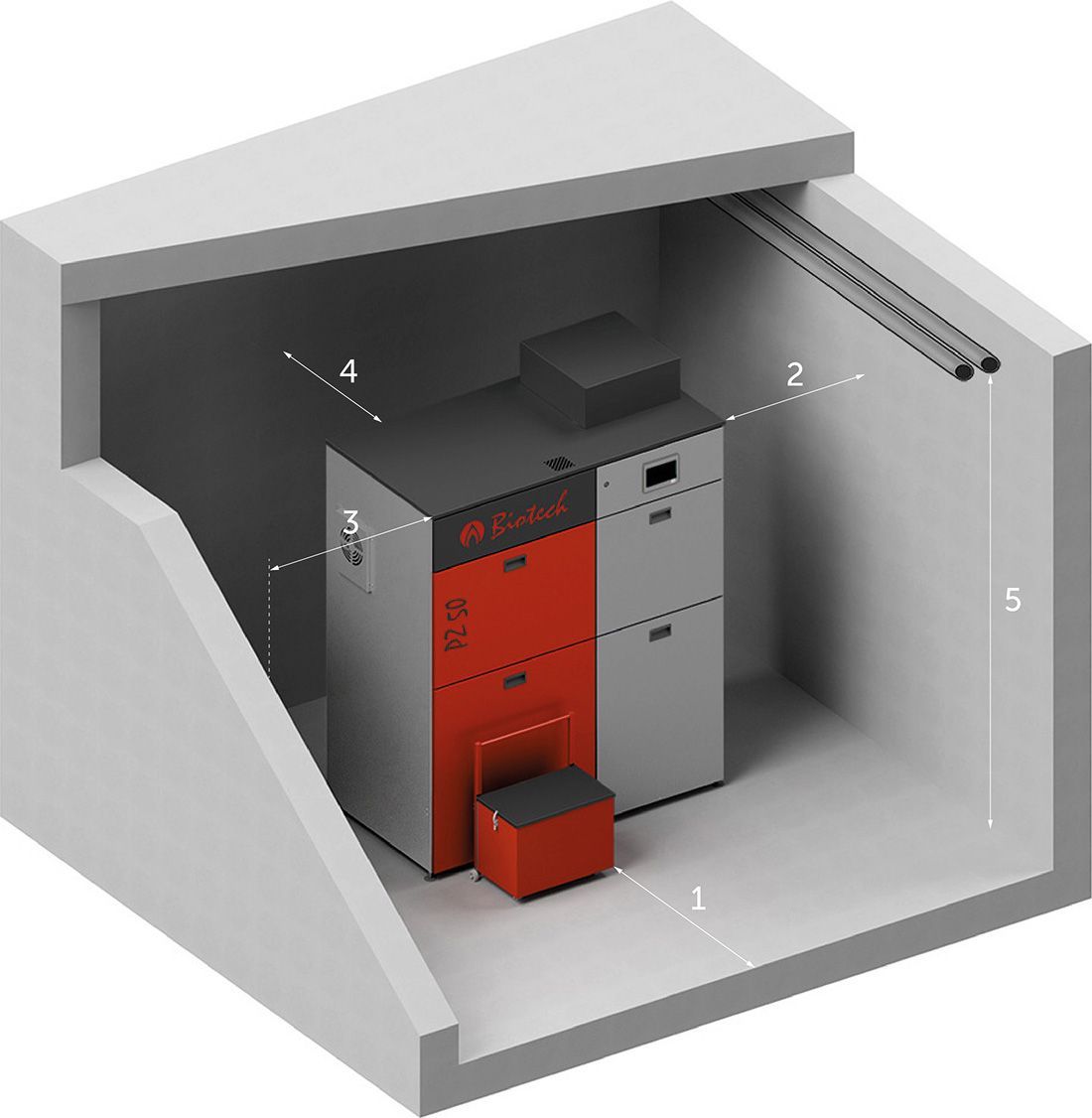

Minimum clearances masonry
1: 1200 mm *
2: 600-900 mm
3: 700-900 mm
4: 700-900 mm
5: 2300 mm
1*) with installed ash discharge 1200 mm
